70mm Pocket Door Kit

£119.50

£143.40

ALL PRICES ARE SUBJECT TO DELIVERY & VAT

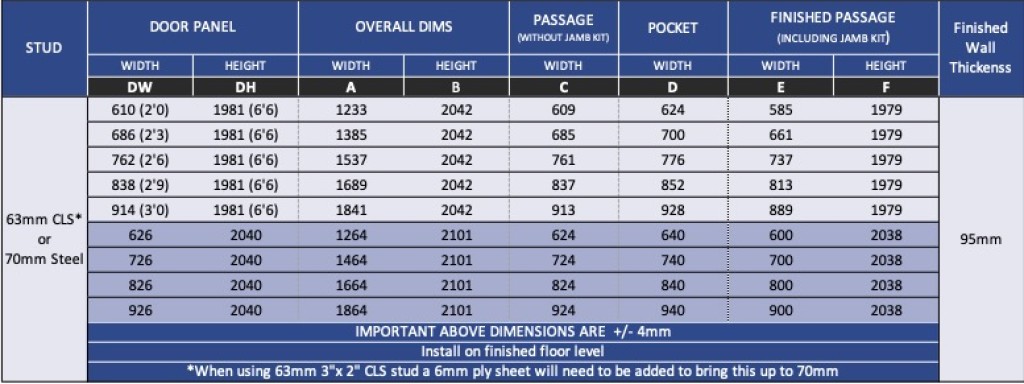

STUDDOOR PANELOVERALL DIMSPASSAGE
(WITHOUTJAMBS)
POCKETFINISHED PASSAGE
(INCLUDING JAMB KIT)
FINISHED
WALL
THICKNESS













63mm CLS*
or
70mm Steel
WIDTHHEIGHTWIDTHHEIGHTWIDTHWIDTHWIDTHHEIGHT














95mm
DWDHABCDEF
610 (2'0)1981 (6'6)123320426096245851979
686 (2'3)1981 (6'6)138520426857006611979
762 (2'6)1981 (6'6)153720427617767371979
838 (2'9)1981 (6'6)168920428378528131979
914 (3'0)1981 (6'6)184120429139288891979
6262040126421016246406002038
7262040146421017247407002038
8262040166421018248408002038
9262040186421019249409002038
IMPORTANT ABOVE DIMENSIONS ARE +/-4mm
Installed on finished floor level
*When using 63mm 3 x2 CLS stud a 6mm ply sheet will need to be added to bring this up to 70mm



This kit is suitable for:

  • 35-44mm thick doors

  • Up to 60 KG in weight per door

  • Fits 63mm CLS studwork (see stud tab above)  or 70mm steel studwork perfectly

  • 12.5 standard plasterboard

  • DOUBLE DOORS - just order two singles (joining brackets included in each single kit)

This kit includes:

  • All the galvanised steel uprights and horizontals required to build the pocket, plus the track

  • The brackets to fit the frame to the stud work that double as plasterboard positioners and supports

  • Adjustable pocket entrance floor guide

  • Runners with carbon steel 'sealed for life' bearings

  • A spring steel door brake(soft close option available click here)

  • A LIFETIME WARRANTY

Door Jambs / LiningsOrder separtely here for 95 or 125 mm finished wall thickness.

YOUR FREE HANDLE OFFER

For yourFREE handle select your frame, select a handle or lock fromaccessories and simply type 'FREEHANDLE' in the discount box at the checkout to remove the cost.

What do I need to supply?

  • Door Panel 35 or 44mm thick, max weight 60kg

  • 63mm CLS studwork (see stud tab above) or 70mm steel studwork

  • Plasterboard



Delivery:

  • Next working day if ordered before 1.30pm for UK mainland (Please note, this is not a guaranteed service and on the odd occasion can take up to two working days).

  • 3-5 Days for Highlands, Channel Islands and Northern Ireland.

  • Please call the office for delivery to EIRE, Northern Ireland, Channel Islands and the Scottish highlands, as this will incur an extra delivery cost.

IMPORTANT DELIVERY INFORMATION

Whilst we are doing all we can to meet our normal delivery lead-times, due to the current unprecedented circumstances, there may be unavoidable exceptions.

Please note: Couriers are currently experiencing delays to their services due to significant increase in volume and reduced staff levels. We'd like to ask all customers to be understanding that there may be some delays with deliveries during these unprecedented times. We're all doing our best to keep things moving, and will do everything we can to help ensure you get the products you need as soon as possible.



Technical Information

Download Spec Sheet

CHOOSING YOUR ROCKET POCKET DOOR KIT

The Rocket Pocket kit comes in 9 specific sizes, each made for a standard UK door size so you can choose the door you want and it fits first time, every time!!

Max door weight is 60kg which covers most standard doors.  For a double door just buy two singles, they come with a joining bracket completely free of charge with each unit.

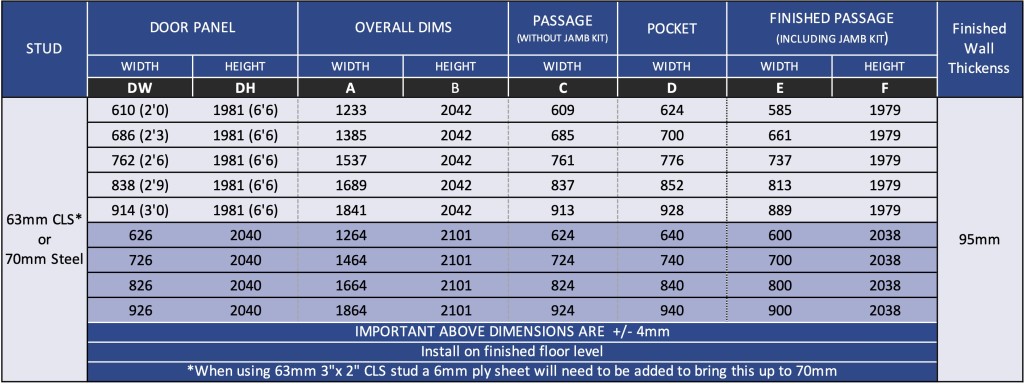

So you can choose you door panel size from the table below or if the overall space is the more important factor then find the nearest and you will see what door size you need to purchase.  It's really simple!

WHAT DO YOU GET WITH THE KIT

  • A complete galvanised steel pocket and integral running track, both corrosion resistant.
  • A set of runners each having two 'sealed for life' carbon steel bearing wheel that are contained within the track and cannot 'jump' off the rails.
  • A spring steel braking system is included as standard and brakes the door closure under normal usage.
  • Door brackets to attach the door to the runners, these have the  possibility to adjust up to 7mm so your door can be at the perfect height (remember to always install your frame at finished floor level)
  • Included also are 19mm plasterboard screws for attaching your plasterboard to the framework.  These are important as they are just the right size to attach the board and not protrude too much with the risk of scratching your door.
  • A full 12 year warranty against manufacturing and material defects.

So that's it, everything you need to make a door of your choice into a pocket door.  You need only supply the door, plasterboard and any wood linings you choose.

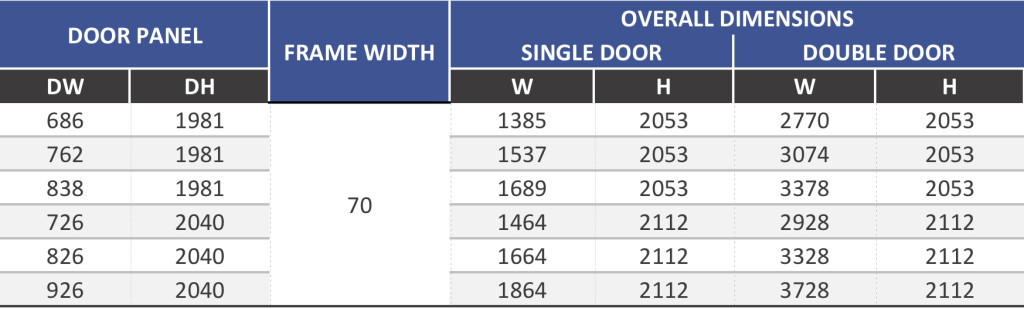

DOUBLE ROCKET POCKET DOORS

Its so easy, each single Rocket Pocket system has an adaptable bracket that ben be used to connect two singles and make them a double so there is no extra cost for a joining kit.  When Installing a double system remember to ensure both systems are perfectly in line and plumb and then the doors will meet exactly in the middle.

double pocket doors fixings

Installation

Resources to help you with installing your sliding pocket door kit

Take a look at this Rocket Pocket Door video clip below or download our installation instructions to help you with installing your pocket door. The instructions include a list of tools you will require. View the video or scroll down to see how you create the linings.

DOWNLOAD 70MM FRAME INSTRUCTIONS

DOWNLOAD JAMBS FOR 95mm FINISHED WALL THICKNESS

"The builder who put it together said it was straightforward to do. He's not done something like this before, and found the instructions and video quite helpful!" - feedback from a happy customer.

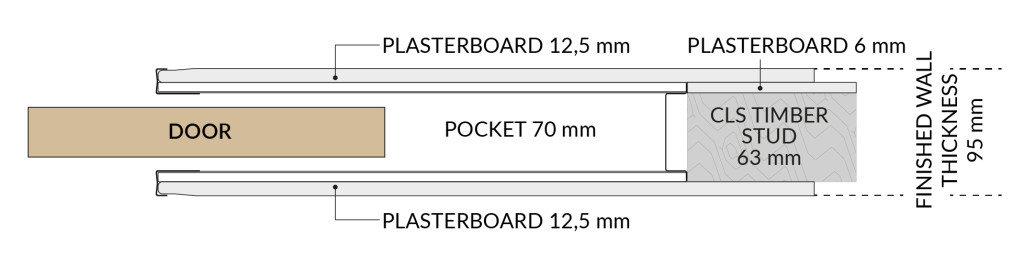

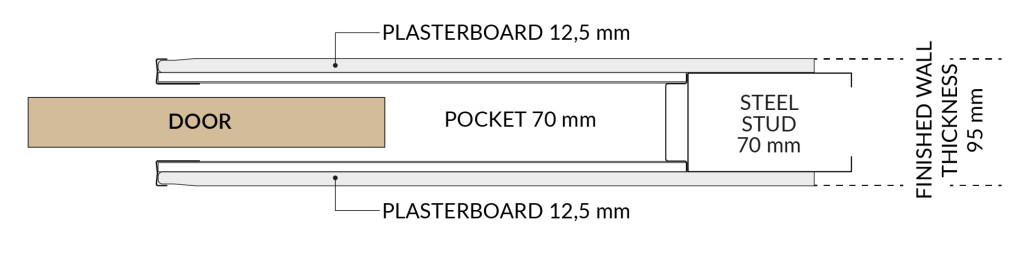

STUD SIZES

See the table below for recommdations.

sizes

DOWNLOAD AS PDF
